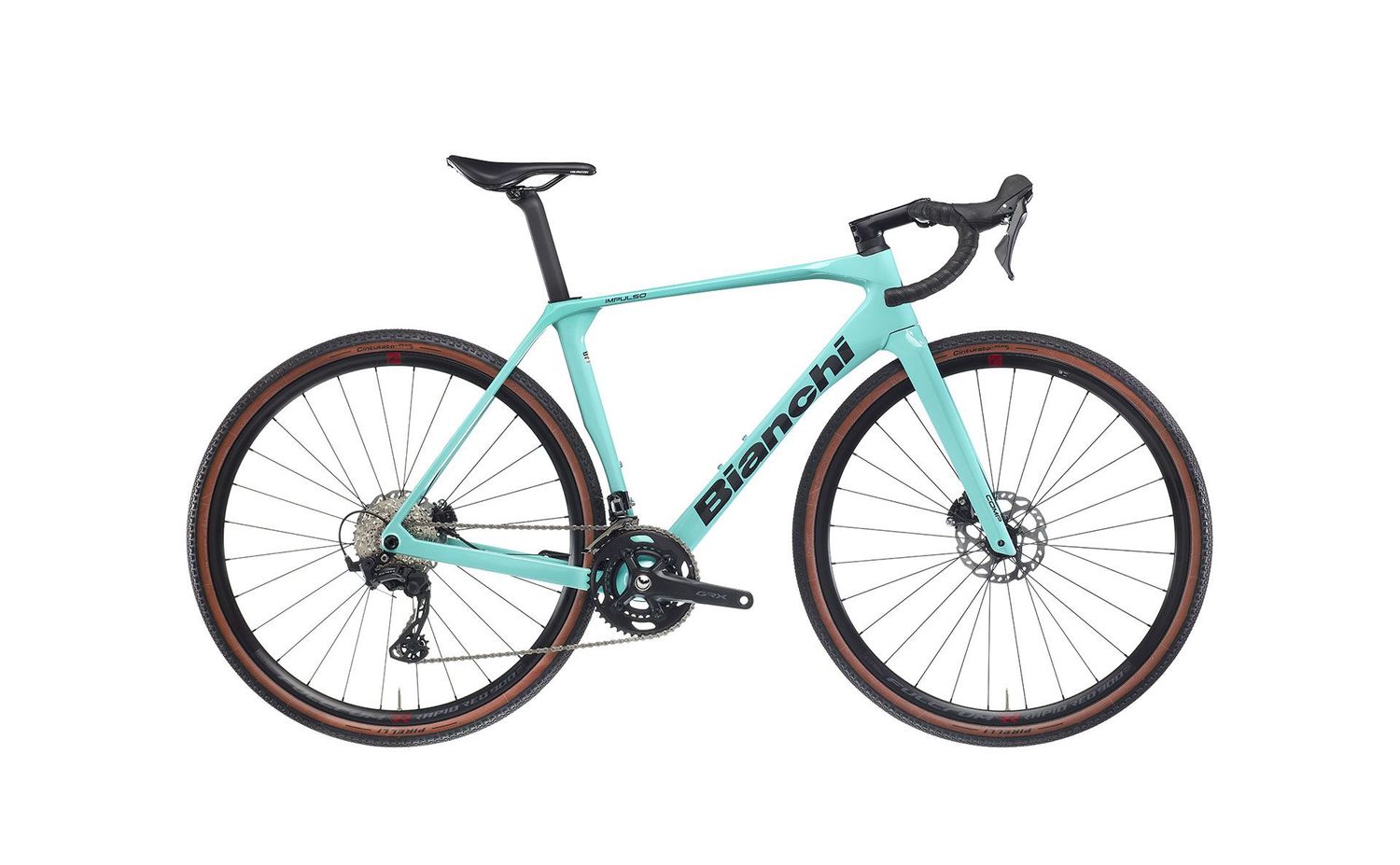

Bianchi Impulso Comp Shimano GRX 610/820 2x12 MY25

Frameset

1. Frame

   Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X diam.41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur: Brazed-on Type Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: 46T-52T

2. Fork

   Bianchi Impulso Integrated Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Carbon Fiber Composite

3. Headset

   Bianchi Custom Acros ICR (Internal Cable Rounting)

Drivetrain

1. Shifters

   Shimano GRX 610 ST-RX610

2. Rear Derailleur

   Shimano GRX 820 RD-RX820 Maximum Cassette Sprocket 36T

3. Front Derailleur

   Shimano GRX 820 FD-RX820

4. Crankset

   Shimano GRX 610 FC-RX610 46-30T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)

5. Bottom Bracket

   Shimano SM-BB72-41B, press fit

6. Chain

   Shimano CN-M7100

7. Cassette

   Shimano CS-HG710-12 speed, 11-36T Driver body Interface: HG11

Brakes

1. Brakes

   Shimano Hydraulic Brake, BR-RX400

2. Rotor

   Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

Wheels

1. Wheels

   Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm

2. Tire

   Pirelli Cinturato™ GRAVEL H Classic, 40-622 tan sidewall

Cockpit

1. Stem

   Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)

2. Handlebar

   Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)

3. Grips / Extensions

   La Spirale Ribbon cork

Saddle

1. Seatpost

   Bianchi Custom D-Shape Offset: 20mm Back Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 380mm-LG(58) XL(61) Material: Epoxy - HM-HS Carbon Fiber Composite

2. Saddle

   Velomann MITORA 149 H1, cover: soft touch, padding: foam, shell: nylon carbon, open shell, Aisi rails, lenght: 250mm, width: 149mm, weight: 230g ± 2

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
